Analysis of Semi-Active Loudspeaker Topologies

High-fidelity audio often struggles against the physical limitations of drivers. A specialized hybrid topology known as the “Internal Subwoofer” or “Semi-Active” configuration addresses this. It relieves main drivers of deep bass duties to improve midrange linearity. This report analyzes the engineering, circuit topologies, and commercial implementations.

The Integrated Bass Paradigm

Woofer linearity defines a driver’s ability to convert electrical signals into acoustic output with a constant ratio. No driver is perfectly linear. Non-linearities worsen as low-frequency extension demands increase.

The Excursion Problem

Reproducing a 40Hz tone requires sixteen times the cone excursion of a 160Hz tone at the same volume. Large excursions force the voice coil into non-uniform magnetic flux regions.

Doppler Distortion

A cone moving violently for bass while playing midrange notes causes Frequency Modulation (FM). The midrange pitch shifts slightly as the cone moves toward and away from the listener.

The Solution

A 100Hz high-pass filter drastically reduces cone motion. The voice coil stays centered. An internal amplifier with inverse equalization restores the deep bass.

Signal Path Architecture

Unlike standard bi-amping, the semi-active topology modifies the signal before the main amplifier. This preserves the main amplifier’s power for the critical midrange and high frequencies.

Typical Active/Passive Split

Preamp Output

➜

High Pass Filter
(Passive RC)
~100Hz

➜

Main Power Amp

➜

Mid/High Drivers

⬇ PARALLEL PATH ⬇

Speaker Terminals
(Input)

➜

Internal Bass Amp
(Inverse EQ)

➜

Subwoofer Driver

This architecture implies the main amplifier “sees” a benign load. The difficult phase angles and high current demands of deep bass are handled entirely by the internal dedicated amplifier.

Visualizing Linearity Gains

The chart below illustrates the dramatic reduction in cone excursion required when a 100Hz high-pass filter is applied compared to a full-range signal.

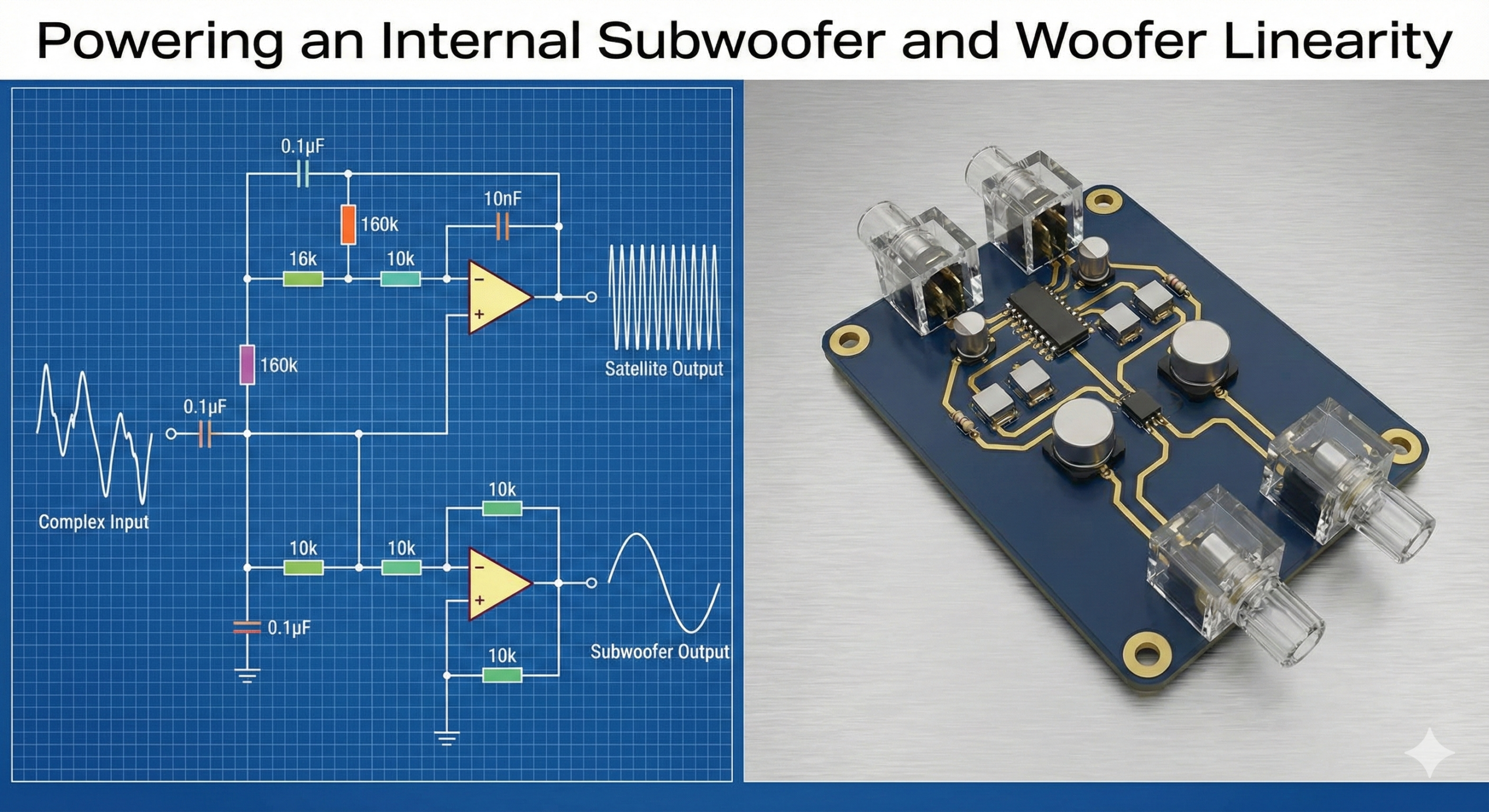

Circuit Topology: 160kΩ / 10nF Network

The “160kΩ / 10nF” network referenced in technical literature functions as a specific crossover determinant. It establishes a corner frequency ($f_c$) of approximately 100Hz.

f_c = 1 / (2 × π × R × C)
f_c ≈ 99.47 Hz

The “Inverse” Mechanism: A passive high-pass filter creates a roll-off of 6dB per octave below 100Hz. The internal subwoofer amplifier applies an equalization curve that is the exact inverse. It boosts the bass output by 6dB per octave starting at 100Hz and extending downward.

Phase Coherence: The passive high-pass filter introduces a phase lead. The active inverse boost filter introduces a corresponding phase lag. These sum acoustically to a transient-perfect system, unlike typical 4th-order Linkwitz-Riley crossovers which rotate phase by 360 degrees.

High-Pass Filter Impedance Matching

The efficacy of the high-pass filter is strictly dependent on the input impedance ($Z_{in}$) of the power amplifier. A common error in wiring this topology is ignoring the interaction between the filter capacitor and the amplifier’s input resistance.

CRITICAL WARNING: Connecting a generic high-pass filter to an amplifier with standard 20kΩ-47kΩ input impedance without adjustment will result in the loss of mid-bass frequencies (200Hz-500Hz).

Scenario A: Matched (160kΩ)

If the amplifier has an input impedance of 335kΩ (e.g., tube amps) or is modified to a specific standard like 160kΩ, a 0.01µF (10nF) capacitor creates the correct 100Hz corner frequency.

f = 1 / (2π * 160000 * 10e-9) ≈ 99.5Hz

Scenario B: Mismatched (22kΩ)

If the same capacitor is used with a solid-state amp having 22kΩ input impedance, the crossover point shifts dramatically upward, cutting off essential musical information.

f = 1 / (2π * 22000 * 10e-9) ≈ 723Hz

Resolution: High-end implementations often use adjustable dip switches on the filter box to add parallel resistance or change capacitance, allowing the user to tune the filter to the amplifier’s specific input impedance.

Transient Accuracy & Phase Time

Most loudspeakers use steep 4th-order filters (24dB/octave). While these protect drivers well, they introduce significant phase rotation (360 degrees) and “time smear,” where the bass arrives milliseconds later than the treble.

The First-Order Advantage

Semi-active systems utilizing 1st-order (6dB/octave) electrical slopes are among the few that can reproduce a perfect “Step Response.” This means all frequencies from deep bass to high treble hit the listener’s ear simultaneously.

Musical Consequence

On a kick drum, a time-coherent system renders the “snap” of the beater and the “thud” of the drum body as a singular explosive event. High-order systems often separate these, causing the bass to sound slow or detached.

Amplifier Headroom & Voltage Swing Efficiency

Removing low frequencies from the main voltage rail exponentially increases available headroom.

The Physics of Low Frequencies

Acoustic energy density is highest in the bottom octaves. To reproduce a 30Hz wave at 90dB requires significant voltage swing.

Formula: $V_{peak} = \sqrt{2 \times P \times R}$

Typical 100W/8Ω requirement: ~40V Peak

The High-Pass Advantage

By filtering below 100Hz, the main amplifier effectively becomes a midrange specialist. It operates in its “Class A” bias region longer and rarely clips.

Voltage Swing (Full Range)

Voltage Swing (High-Passed)

*Approximate reduction in peak voltage demand.

The Logic of High-Level Inputs

A common question arises: “Why connect the subwoofer to the amplifier’s speaker terminals (High-Level) instead of the preamp’s RCA outputs (Low-Level)?”

Sonic Signature Transfer: Your main amplifier has a specific “flavor,” damping factor, and timing characteristic. By feeding the subwoofer the exact same signal that the main speakers receive, the bass character matches the midrange character perfectly.
Timing & Phase: RCA signals from a preamp often arrive slightly earlier than the signal passing through the power amp stages. High-level connection ensures the bass starts exactly when the main speakers start.
Gain Matching: The subwoofer volume tracks the main volume knob perfectly without requiring a separate preamp volume adjustment.

Thermal Dynamics & Power Compression

A frequently overlooked advantage of semi-active wiring is the mitigation of thermal compression.

Voice Coil Heating

As voice coils heat up, their resistance ($R_e$) increases. This increase reduces the driver’s efficiency, causing “compression” where increased power input yields diminishing acoustic output.

Passive Crossover Drift

In fully passive speakers, high current bass signals heat up crossover inductors and resistors. This heat changes their component values, shifting the crossover frequency during loud passages.

The Active Advantage

By removing high-current bass from the passive crossover network entirely, the components remain thermally stable. The main amplifier runs cooler, maintaining lower output impedance and better damping factor.

Back EMF & Feedback Loop Isolation

Large woofers generate significant “Back Electromotive Force” (Back EMF) when the voice coil moves through the magnetic gap, effectively acting as a generator.

The Pollution Mechanism

In a standard passive system, this Back EMF travels back up the speaker cable and into the amplifier’s output stage. This can destabilize the amplifier’s global negative feedback loop, adding “grain” or harshness to high frequencies.

The Semi-Active Isolation

Because the main amplifier is physically disconnected from the large woofer motor (which is driven by its own dedicated internal amplifier), the Back EMF is completely contained. The main amplifier sees a purely resistive, benign load from the midrange driver.

Control Theory: Servo vs. Feed-Forward

While all semi-active systems offload bass duties, the method of controlling the woofer cone varies. Two distinct schools of engineering dominate this space.

Feed-Forward (Analog Inverse)

Method: The system assumes the behavior of the woofer is constant and applies a pre-calculated inverse equalization curve.

Pros: Zero latency. No feedback loop stability issues. Extremely natural transient response if the driver is high-quality.

Cons: Cannot correct for driver aging, extreme thermal compression, or physical damage. Requires precise manufacturing tolerances.

Example: Vandersteen, Von Schweikert

Servo-Feedback

Method: An accelerometer is mounted to the woofer cone. It sends a signal back to the amplifier, which compares the cone’s actual movement to the input signal and corrects errors in real-time.

Pros: Drastically lowers Total Harmonic Distortion (THD). Can force a light cone to produce deep bass. self-corrects for aging.

Cons: Introduces complexity and potential loop delays. Can sound “over-damped” or sterile if the feedback gain is too high.

Example: Infinity IRS, Genesis, Rythmik

Commercial Implementation Comparison

Use the filters below to isolate models based on their technology stack.

Manufacturer	Model	Tech Type	High-Pass Method	Bass Tech	Input Type
Vandersteen	Model 5A Carbon	Analog Inverse	External Passive (M5-HP)	Analog Feed-Forward	Line-Level
Genesis	Genesis V	Servo Control	External Active Interface	Accelerometer Feedback	High-Level
GoldenEar	Triton Reference	DSP / Digital	Internal Passive/Active	56-bit DSP Engine	High-Level / LFE
Infinity	IRS Beta	Servo Control	External Active X-over	Accelerometer Servo	Line-Level
Von Schweikert	Ultra 55	Analog Inverse	Full Range Mids (None)	Analog Active Sensing	High-Level

Room Acoustics & Optimization

Passive speakers are fixed designs; they cannot adapt to the standing waves (room modes) inherent in listening environments. Semi-active designs offer specific adjustability mechanisms.

The 11-Band Equalization Approach

Some analog implementations (e.g., Vandersteen) utilize an 11-band analog equalizer specifically for the bass frequencies (20Hz–120Hz). This allows the user to cut frequencies that boom due to room dimensions.

Q-Control (Damping): Adjusts the “tightness” of the bass to match the room’s reverb time. A high-Q room needs a low-Q woofer setting.
Level Adjustment: Matches the subwoofer output to the main amplifier’s gain structure.
Placement Freedom: Since bass levels are adjustable, the main towers can be placed for optimal imaging (soundstage) rather than being forced into corners for bass reinforcement.

Baffle Step Compensation Physics

Loudspeakers naturally lose 6dB of output as frequencies drop below a wavelength equal to the cabinet width (the “Baffle Step”). The sound waves stop projecting forward and wrap around the enclosure.

Passive Challenge

Standard speakers must use large inductor coils to attenuate the midrange and treble by 6dB to match this weak bass. This throws away 75% of the amplifier power just to balance the tone.

Active Solution

Semi-active systems ignore this loss in the passive domain. The internal bass amplifier simply adds the required gain to compensate for the wrap-around effect. The result is a system with 6dB higher sensitivity.

Advanced Material Physics: Dielectric Bias

In high-end crossover applications, specifically within the High-Pass Filter network, the insulation material (dielectric) inside the capacitor can impede performance.

The Problem: Energy Storage

Capacitor dielectrics absorb and release energy slightly out of time with the music signal. This is known as Dielectric Absorption (DA), which causes “smearing” or a lack of clarity in critical transient details.

The Solution: DC Bias

By applying a constant DC voltage (via a battery pack) to the capacitor’s shield or a specific grid, the dielectric molecules are polarized and aligned. This prevents them from randomly absorbing musical energy, resulting in a “blacker” background and cleaner signal transmission.

Safety Protocol for Balanced/Bridged Amplifiers

CRITICAL WIRING ALERT:

Many high-pass filters use a “Common Ground” reference. If your main amplifier is Fully Balanced (Differential) or Bridged, the negative speaker terminal is LIVE, not ground.

Connecting a standard single-ended high-pass filter to a differential amplifier can short the amplifier’s output stage to ground, causing catastrophic failure.

SOLUTION: You must use a specifically designed “Balanced” high-pass filter for differential amplifiers.

Critical Guidelines

First-Order Filters: Use 6dB/octave slopes for perfect impulse response and no ringing.
Battery Bias: Apply DC bias to capacitors (Vandersteen method) to reduce dielectric absorption.
Strict Impedance Matching: Verify amp input impedance. A mismatch shifts the crossover point.
Star Grounding: Ensure the internal amp and external amp share a common ground reference to prevent hum.

Avoid These

Common Ground on Balanced Amps: See Safety Protocol above.
Double Filtering: Never use LFE inputs on a receiver while using a mains high-pass. It causes phase rotation.
Digital Latency: Avoid mixing DSP bass with analog mains unless latency is compensated.
Aesthetic Placement: Do not corner-load speakers just for bass gain if it ruins the stereo image.
Daisy Chaining: Do not chain the high-pass filter with other inline devices (buffers, tube stages) without calculating loading effects.

Frequently Asked Questions

Why use an external high-pass filter instead of an internal one?

An external filter placed before the power amplifier prevents low frequencies from ever entering the amplifier. This reduces the load on the amp, lowers distortion, and improves headroom for the midrange and treble. Internal passive filters only protect the driver, not the amp.

Can I use any subwoofer with this topology?

No. This topology relies on a specific “Inverse” equalization curve in the subwoofer amplifier that mirrors the roll-off of the main speakers. A standard subwoofer lacks this specific mirrored response and will not integrate correctly in the time domain.

What is the “160k/10nF” circuit used for?

It is a specific RC (Resistor-Capacitor) network used to create a first-order high-pass filter at approximately 100Hz. This is the standard crossover point for many semi-active systems like the Vandersteen Model 5.

Does this configuration require two sets of speaker cables?

Typically, yes (Bi-wiring). One set carries the high-passed signal to the midrange/tweeter inputs, and the second set carries the signal to the subwoofer input (which then feeds the internal amplifier).
